Product Description	Pinnacle Studio MovieBoard - video input adapter - PCI
Device Type	Video input adapter - plug-in card
Interface Type	PCI
Video Input	S-video input, S-video output, composite video input, composite video output, IEEE 1394 (FireWire) - plug-in card
Analog Video Format	NTSC, SECAM, PAL
Analog Video Signal	S-Video, composite video
Digital Video Format	MPEG-1, MPEG-2, MPEG-4, AVI, DV, MJPEG, RealVideo 8, DivX, WMV
Frame Rate	NTSC: 30 frames per second, PAL: 25 frames per second
Digital Video Capture Resolution	720 x 576, 768 x 480
Audio Input Support	Standard
OS Required	Microsoft Windows XP SP2 or later

General
Device Type	Video input adapter
Enclosure Type	Plug-in card
Interface Type	PCI
Video
Form Factor	Plug-in card
Interface Type	S-video input, S-video output, composite video input, composite video output, IEEE 1394 (FireWire)
Analog Video Format	NTSC, SECAM, PAL
Analog Video Signal	S-Video, composite video
Digital Video Format	MPEG-1, MPEG-2, MPEG-4, AVI, DV, MJPEG, RealVideo 8, DivX, WMV
Frame Rate	NTSC: 30 frames per second, PAL: 25 frames per second
Digital Video Capture Resolution	720 x 576, 768 x 480
Still Image Format	JPEG, BMP, TIFF, TGA, PICT, WMF
Audio Input Support	Standard
Expansion / Connectivity
Interfaces	1 x display / video - composite video input - RCA 1 x display / video - composite video output - RCA 1 x display / video - S-video input - 4 pin mini-DIN 1 x display / video - S-video output - 4 pin mini-DIN 1 x IEEE 1394 (FireWire) - 6 pin FireWire
Compatible Slots	1 x PCI
Miscellaneous
Package Type	Retail
Software / System Requirements
Software Included	Pinnacle InstantDVD Recorder, Pinnacle MediaManager, Pinnacle Studio 10
OS Required	Microsoft Windows XP SP2 or later
Peripheral / Interface Devices	DVD-ROM, PCI slot, DirectX 9.0 compatible sound card, DirectX 9.0 compatible graphics card
System Requirements Details	Pentium - 1.4 GHz - RAM 512 MB - HD 1 GB

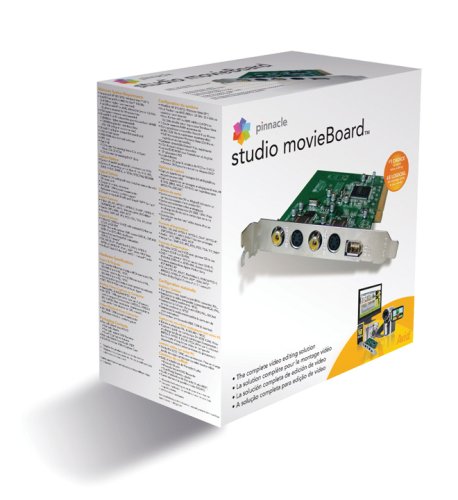

Pinnacle 8230-10026-31 Studio MovieBoard
With Pinnacle Studio™ MovieBoard it's easy to capture video and make great looking movies. Archive your videos, publish them on YouTube or enjoy on DVD's and more.

Pinnacle Studio MovieBoard is a versatile movie-making solution that combines a capture card with the power and simplicity of Pinnacle Studio. The internal PCI card captures video from any analog or digital source. The new Pinnacle Montage theme-based editing feature in Pinnacle Studio puts incredible creative power at your fingertips. Simply drag and drop your video and stills to preview your show – complete with Hollywood style multi-layered effects, animated graphics, titles and Hi-Fi audio. Users can then automatically publish them on the Web or enjoy them on DVDs and portable devices.
